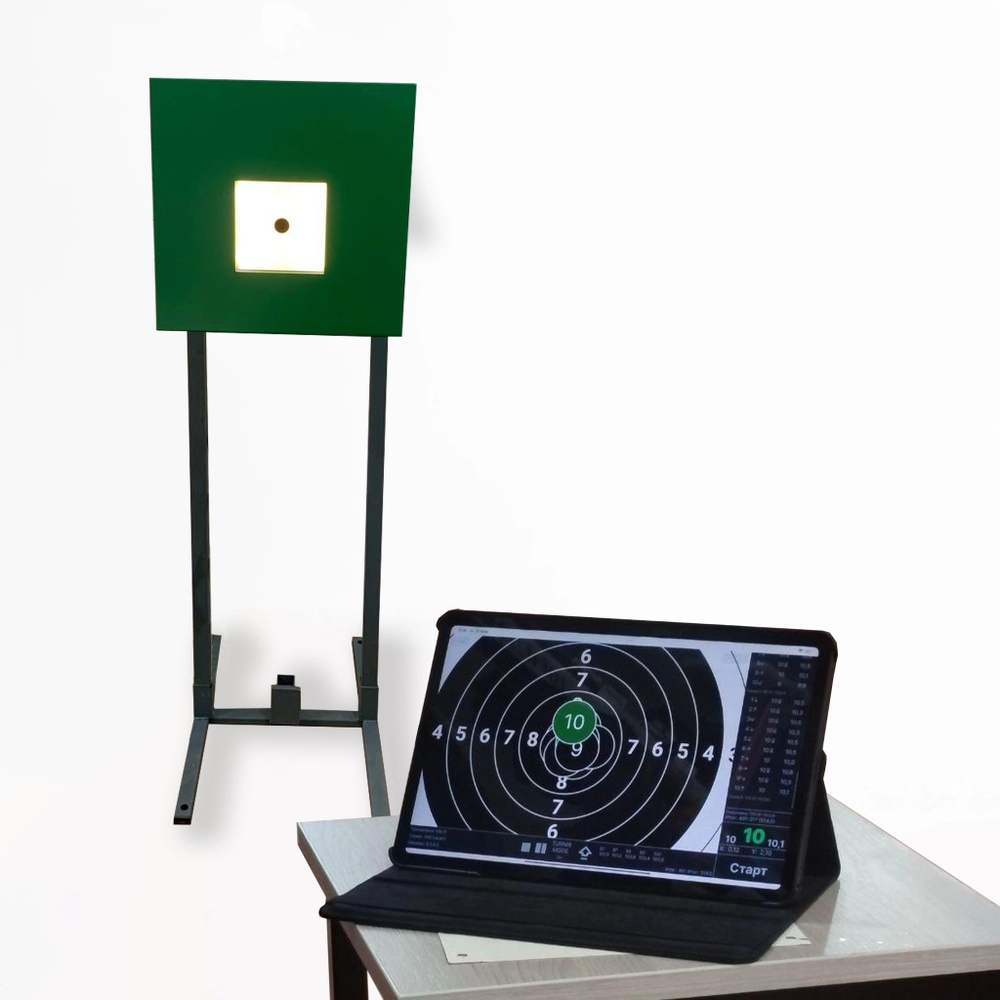

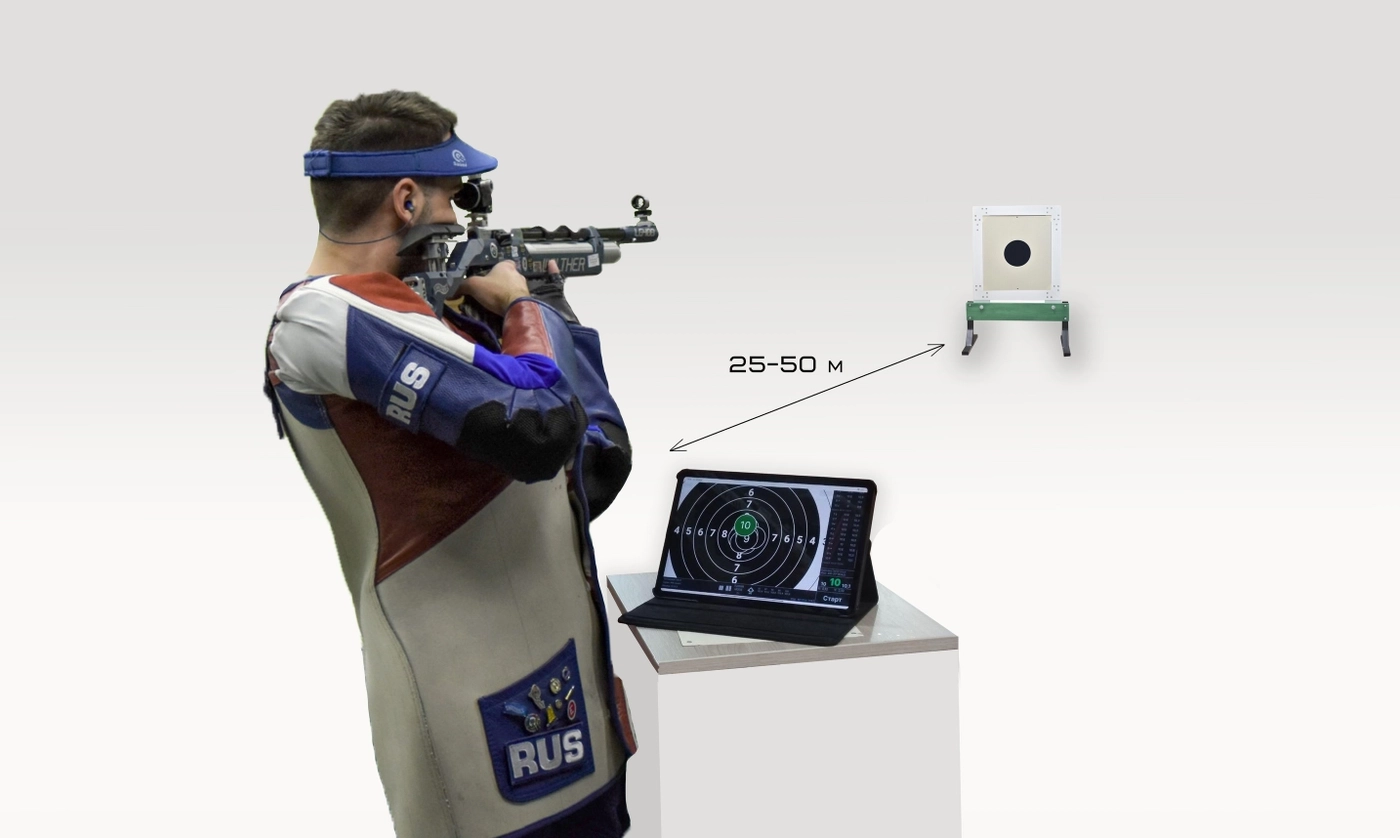

Complex «Iris–2» is an electronic target system for conducting training sessions and competitions in rifle shooting at distances of 25 and 50 meters. It supports all exercise types and targets in accordance with shooting sport rules. Each hit is registered automatically: the result is instantly displayed on the tablet screen in numerical and graphical format. The shooter and coach see the point of impact, shot value, and series total in real time — without the need to approach the target. Communication between the target and tablet can be either wireless or wired. The system is equally effective in indoor ranges and outdoor shooting facilities. Deployment and ready time — no more than one minute.

Complex «Iris–2» applications

• Training and official competition conduct. The system is designed for training and official competition shooting with small-bore firearms at distances of 25 and 50 m. It supports all target types and exercises provided for by the rules of the Belarusian Shooting Sport Federation, including targets for rifle, rapid-fire, and air pistol.
• Automatic scoring and result display. Provides automatic calculation of hit values, series totals, overall scores, and shot time with display in numerical and graphical format on the tablet screen. Results are saved and available for viewing at any time.
• Flexible configuration and scalability. The system design features universal target mounting and modular layout with the capability to connect multiple targets within a single system. Software can be adapted to specific customer requirements.

Complex «Iris–2» advantages

• Enlarged format for larger-caliber distances. The target working area of 550 × 520 mm with an enclosure size of 750 × 750 mm covers all standard small-bore target formats at distances of 25 and 50 m, including rapid-fire and precision shooting exercises.
• Modular wireless architecture. Data transmission is implemented through autonomous wireless converters powered by built-in 3.7 V batteries. This approach simplifies system deployment at shooting facilities of various configurations and eliminates dependency on cable routing.
• Shooting timer integration. Built-in support for joint operation with a shooting timer enables full automated competition control — capturing not only the result but also exercise completion time, in accordance with the requirements of official rifle shooting competitions.

• ET dimensions: 750 × 750 × 100 mm
• ET visible area: 550 × 520 mm
• ET weight: no more than 30 kg
• Converter weight: no more than 0.3 kg
• System weight in packaging: no more than 35 kg
• ET operating voltage: 24 V
• Converter and control device operating voltage: 3.7 V
• Operating frequency: 2,430–2,480 MHz
• Transmitter power: up to 100 mW
• Operating range: up to 50 m
• Protection rating: IP64
• Operating temperature: 0 °C to +45 °C
• ET mounting: universal
• Shooting timer integration: yes
• Deployment time: no more than 1 min

• External Device — 1 pc
• External Control Device — 1 pc
• Protection and Mounting System — 5 pcs
• Converter — up to 5 pcs
• Charger — 1 set
